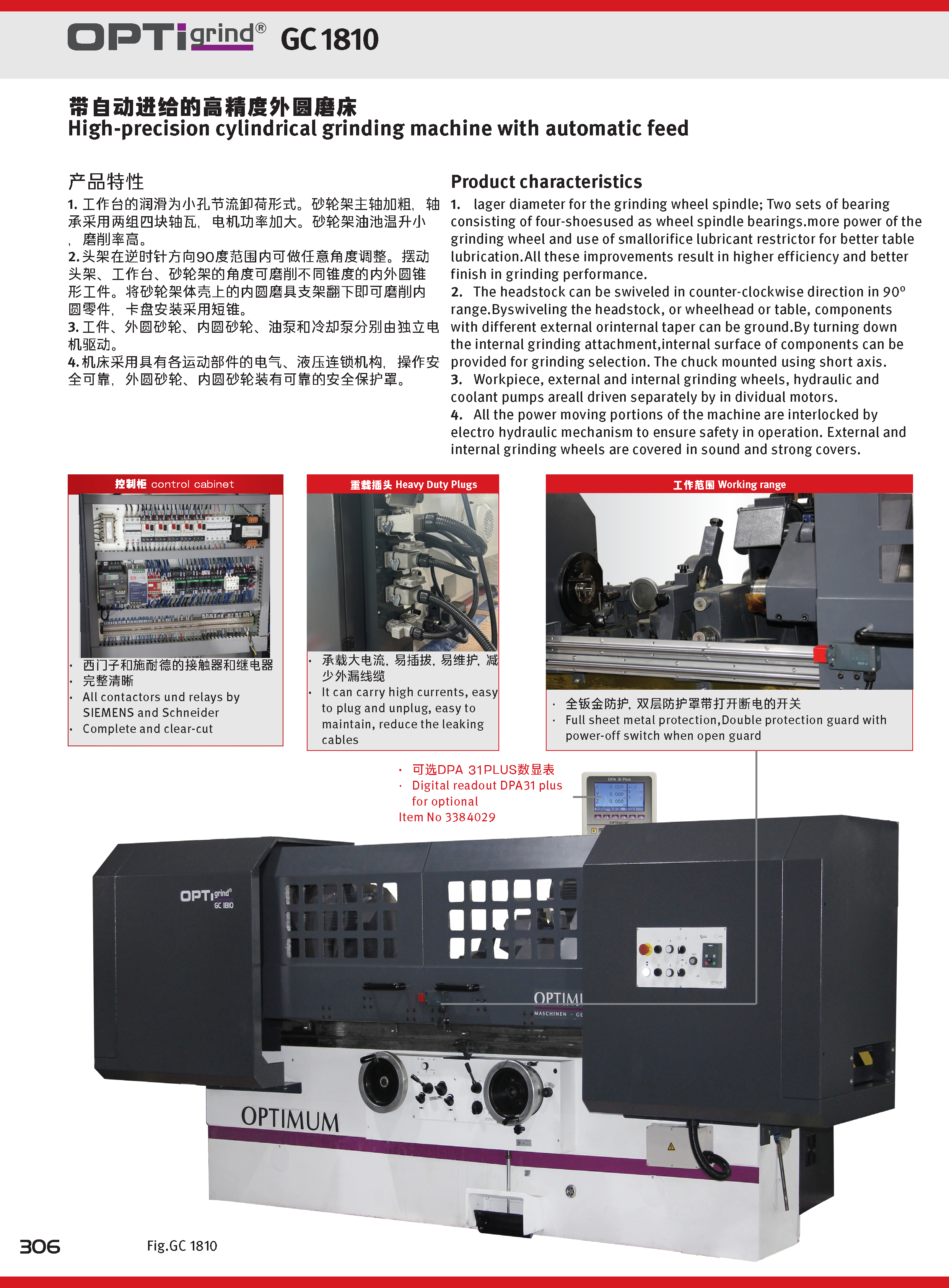

GRINDING MACHINE

GC 1810

High-precision cylindrical grinding machine with automatic feed

lagerdiameter for the grinding wheel spindle; Two sets of bearing consisting of four-shoesused as wheel spindle bearings.more power of the grinding wheel and use of smallorifice lubricant restrictor for better table lubrication.All these improvements result in higher efficiency and better finish in grinding performance.

● Machine table longitudinal travel, wheelhead rapid approach and withdrawal andautomatic periodic cross infeed are driven hydroelectrically by pushing buttonoperation.The machine also has the following functions: hand-operated worktableand wheelhead manually traverse infeed plus hydraulic tailstock quill retraction by foot.

● The headstock can be swiveled in counter-clockwise direction in 90° range.Byswiveling the headstock, or wheelhead or table, components with different external orinternal taper can be ground.By turning down the internal grinding attachment,internal surface of components can be provided for grinding selection. The chuck mounted using short axis.

● Workpiece, external and internal grinding wheels, hydraulic and coolant pumps areall driven separately by in dividual motors.

● All the power moving portions of the machine are interlocked by electro hydraulic mechanism to ensure safety in operation. External and internal grinding wheels are covered in sound and strong covers.
